Procurement fit
Use this product when the project requires a confirmed EV charging configuration before quotation.
480kW Flexible Group EV Charging System is flexible power allocation system for high-throughput fleet depots, charging hubs and multi-vehicle charging projects.
This product is intended for Fleet depots, Public charging hub operators, EPC contractors, Charging project integrators. It supports B2B teams that need a clear product configuration before quotation, sampling, integration planning or project comparison.
Buyer and application
Who it fits and what problem it solves.
Buyer fitFleet depots, Public charging hub operators, EPC contractors, Charging project integrators
Application fitPublic charging hubs, Taxi and ride-hailing fleets, Logistics depots, Ports, High-utilization commercial charging sites
Project problemIt helps charging operators, EPC contractors and project integrators define power level, connector standard, OCPP platform requirement, charging scenario and customization scope before RFQ.
Integration scopeProject configuration should cover power modules, charging connector, HMI/payment requirements, communication interface, OCPP platform, target market and installation scenario.
Confirmed Specifications
Technical Specifications
| Total rated power | 480kW, customizable to 800kW according to material |
|---|
| Simultaneous vehicles | 6-8 vehicles |
|---|
| Single-gun power range | 40-480kW continuously adjustable |
|---|
| Input voltage | AC 380V +/-20% |
|---|
| Input frequency | 50Hz / 60Hz |
|---|
| Output voltage | 200-1000V DC, extendable to 1500V |
|---|
| Single-gun max current | 0-400A continuously adjustable |
|---|
| DC efficiency | >=97% |
|---|
| Power factor | >=0.99 at full load |
|---|
| Standby power | <=18W |
|---|
| Operating noise | <=70 dB |
|---|
| Charging interface | CCS2 / CHAdeMO / GBT customizable |
|---|
| Protocol | OCPP 1.6J + multiple ultra-fast charging protocols according to material |
|---|
| Communication | 4G / Ethernet optional |
|---|
| Expansion | Up to 12 guns according to material |
|---|
| Protection rating | IP54, IP55 available according to material |
|---|
| Operating temperature | -20C to +50C |
|---|
| Cable length | 8m default, 6-15m customizable |
|---|
RFQ Inputs
What information is required for quotation?
- Target market and buyer type.
- Power requirement, connector standard and installation scenario.
- OCPP or backend platform requirement.
- Estimated quantity, project stage and expected timeline.
- Branding, firmware, interface, documentation or packaging scope.
Key Features
Key Features
- Serves multiple vehicles by dynamically allocating power according to demand.
- Supports expansion planning for charging hubs where future charger count may increase.
- Provides higher site throughput than isolated single-pile deployment.
- Suitable for EPC contractors and charging operators designing centralized charging infrastructure.
- Optional configuration can support multi-gun expansion, longer cables, operating logos and network modules.
Gallery Images
Gallery Images

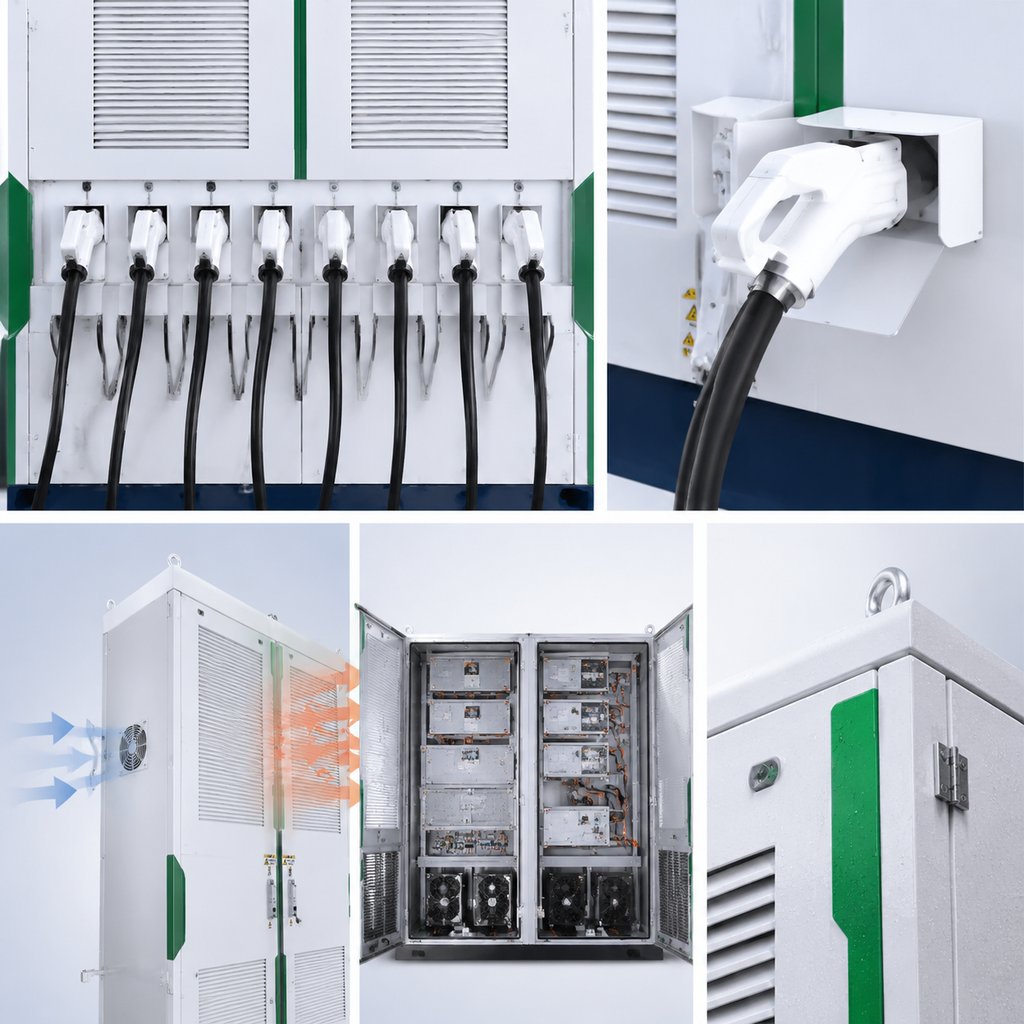

Product Details / Interface Images
Product Details / Interface Images

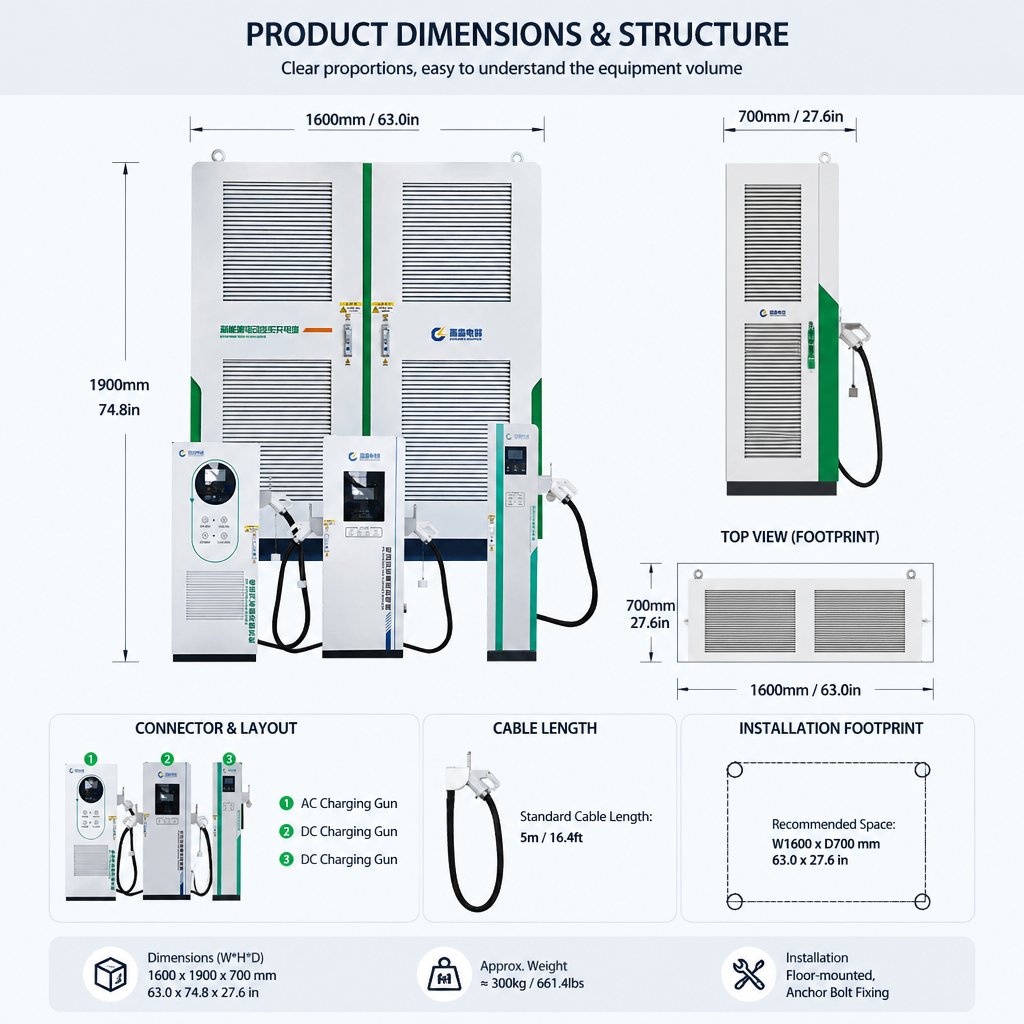

Dimension Drawings
Dimension Drawings

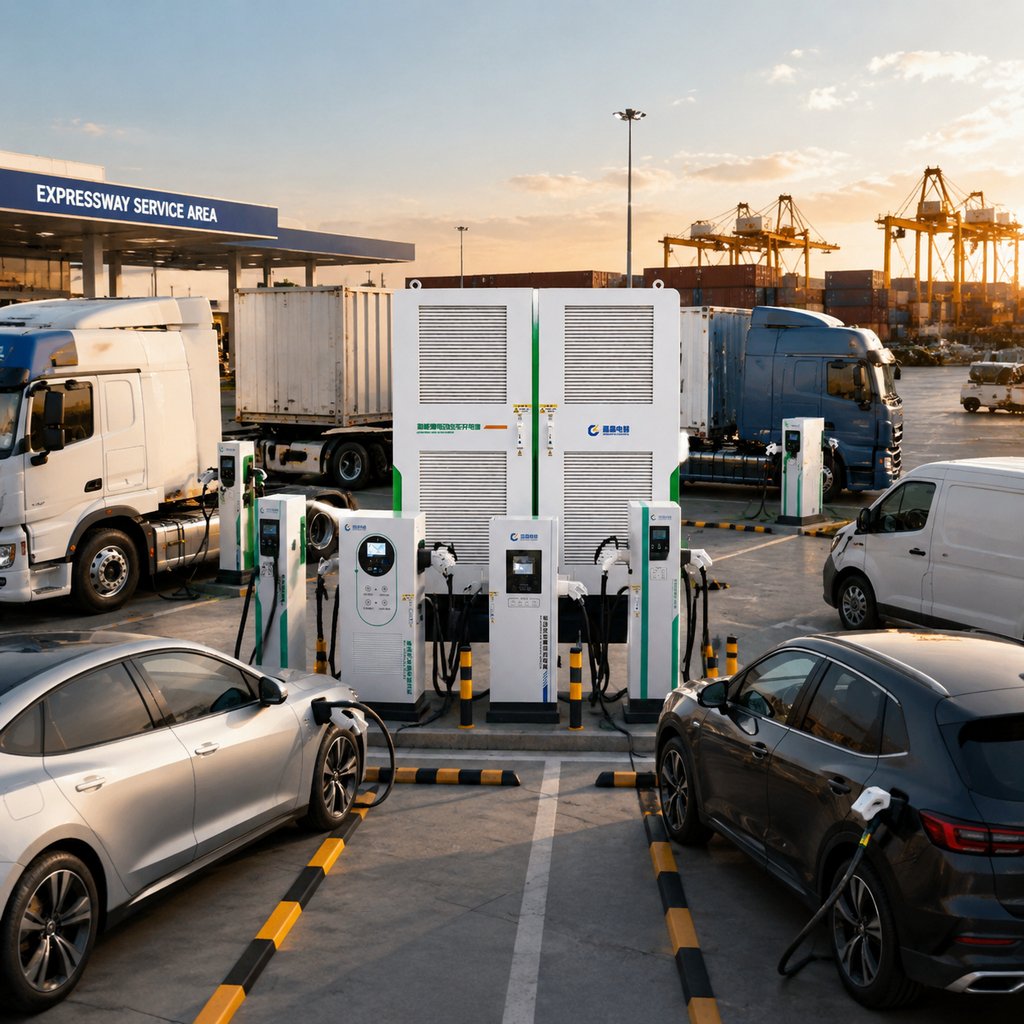

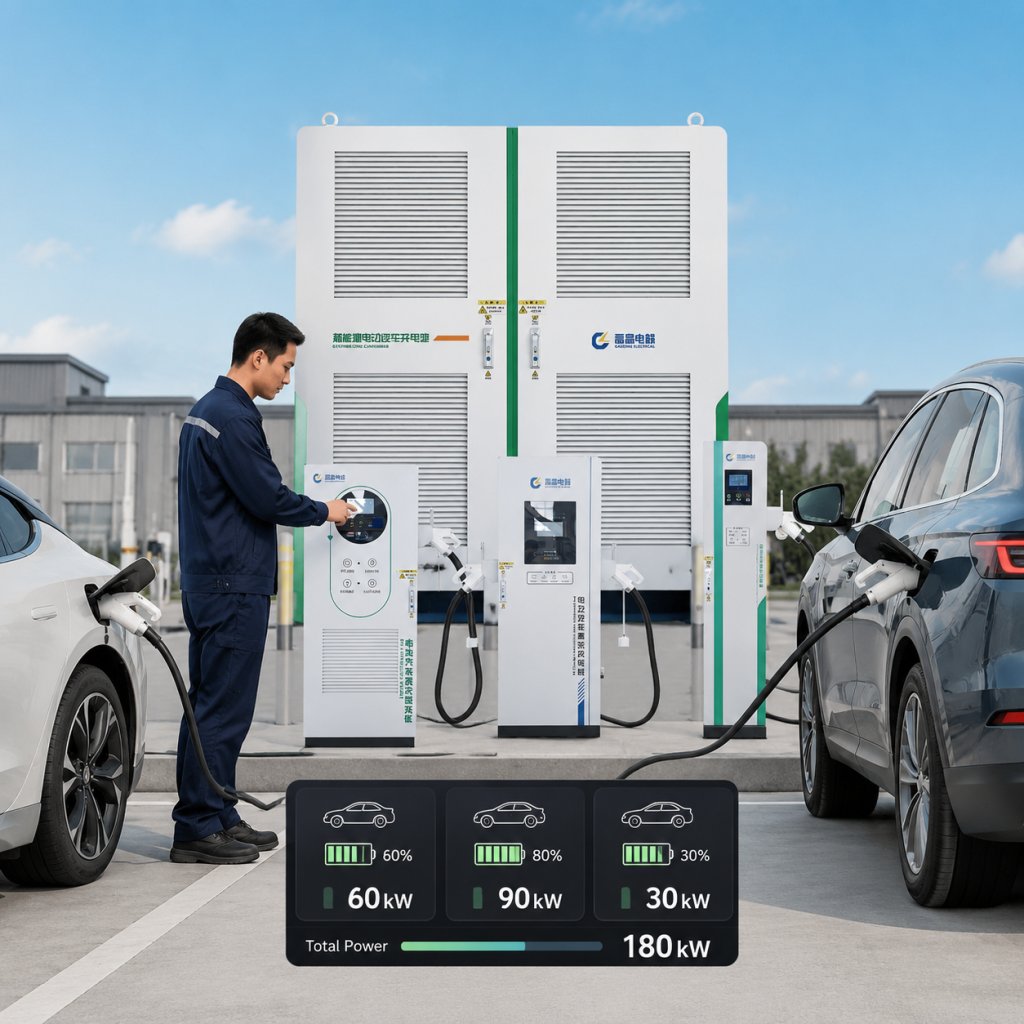

Application Images
Application Images
Product FAQ
What information is required for a quotation?
Please provide target market, power requirement, connector standard, quantity, OCPP or platform requirement, application scenario and customization scope for 480kW Flexible Group EV Charging System.
Which connector standards can be evaluated for this product?
Connector standards can be evaluated during RFQ based on the target market, charger type and available configuration for the selected model.
Can this product integrate with an existing OCPP platform?
OCPP or platform integration should be reviewed against the exact charger model, controller configuration, protocol version and backend platform requirements.
Is the controller configuration project-specific?
Controller and communication configuration can be project-specific and should be confirmed with the charger architecture, HMI, payment system and communication interface requirements.
Can the product be adapted for a target market?
Target-market adaptation can be discussed for connector, communication, documentation and configuration requirements. Compliance details should be confirmed by exact model and market.
What technical information should an OEM buyer provide?
OEM buyers should provide product type, power range, connector standard, controller or platform requirements, branding scope, quantity and application scenario.
Request a Technical RFQ
Share the number of parking bays, vehicle types and required backend platform to get a group charging system proposal.
