Procurement fit
Use this product when the project requires a confirmed EV charging configuration before quotation.
40kW Single-Gun DC Fast Charger is compact DC fast charging equipment for commercial parking, campuses, service areas and small charging stations.
This product is intended for Small station operators, EPC contractors, Charging equipment dealers, Commercial site integrators. It supports B2B teams that need a clear product configuration before quotation, sampling, integration planning or project comparison.
Buyer and application
Who it fits and what problem it solves.
Buyer fitSmall station operators, EPC contractors, Charging equipment dealers, Commercial site integrators
Application fitCommercial parking lots, Office campuses, Hotels, Hospitals, Small charging stations, Light fleet charging points
Project problemIt helps charging operators, EPC contractors and project integrators define power level, connector standard, OCPP platform requirement, charging scenario and customization scope before RFQ.
Integration scopeProject configuration should cover power modules, charging connector, HMI/payment requirements, communication interface, OCPP platform, target market and installation scenario.
Confirmed Specifications
Technical Specifications
| Rated power | 40kW |
|---|
| Input voltage | AC 380V +/-20% |
|---|
| Input frequency | 50Hz / 60Hz |
|---|
| Output voltage | 200-1000V DC adjustable |
|---|
| Output current | 0-120A continuously adjustable |
|---|
| DC efficiency | >=96% |
|---|
| Power factor | >=0.99 at full load |
|---|
| Standby power | <=15W |
|---|
| Charging interface | CCS2 / CHAdeMO / GBT customizable |
|---|
| Protocol | OCPP 1.6J, OCPP 2.0 optional |
|---|
| Communication | 4G / Wi-Fi / Ethernet optional |
|---|
| Protection rating | IP54 |
|---|
| Operating temperature | -20C to +50C |
|---|
| Dimensions | Approx. 700 x 1600 x 330mm, H x W x D |
|---|
| Cable length | 5m default, 3-10m customizable |
|---|
RFQ Inputs
What information is required for quotation?
- Target market and buyer type.
- Power requirement, connector standard and installation scenario.
- OCPP or backend platform requirement.
- Estimated quantity, project stage and expected timeline.
- Branding, firmware, interface, documentation or packaging scope.
Key Features
Key Features
- Entry-level DC fast charging option for sites that need faster charging than AC equipment.
- Supports CCS2, CHAdeMO and GBT interface options based on project requirements.
- OCPP 1.6J support with OCPP 2.0 optional according to material.
- Optional 4G, Wi-Fi and Ethernet communication for charging platform connection.
- Compact form factor and OEM/ODM options reduce deployment and branding barriers.
Gallery Images
Gallery Images

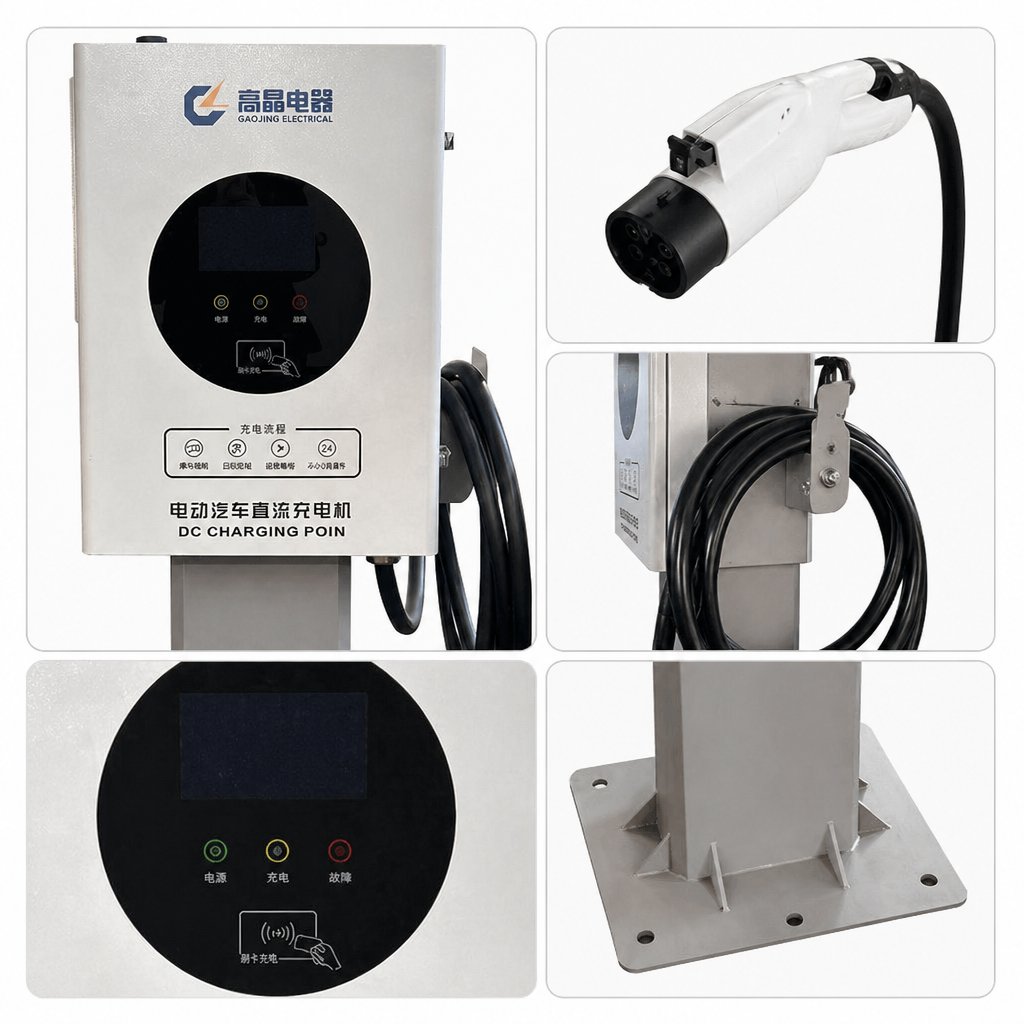

Product Details / Interface Images
Product Details / Interface Images

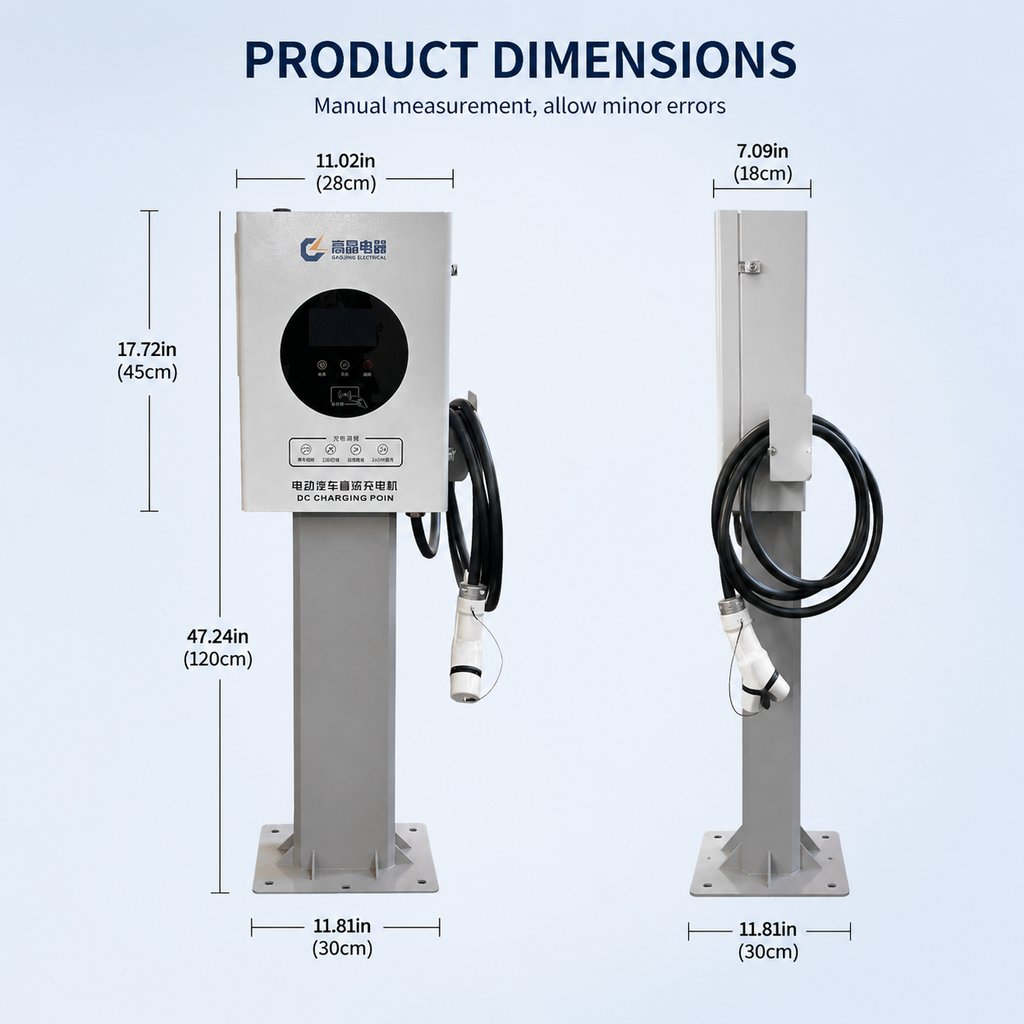

Dimension Drawings
Dimension Drawings

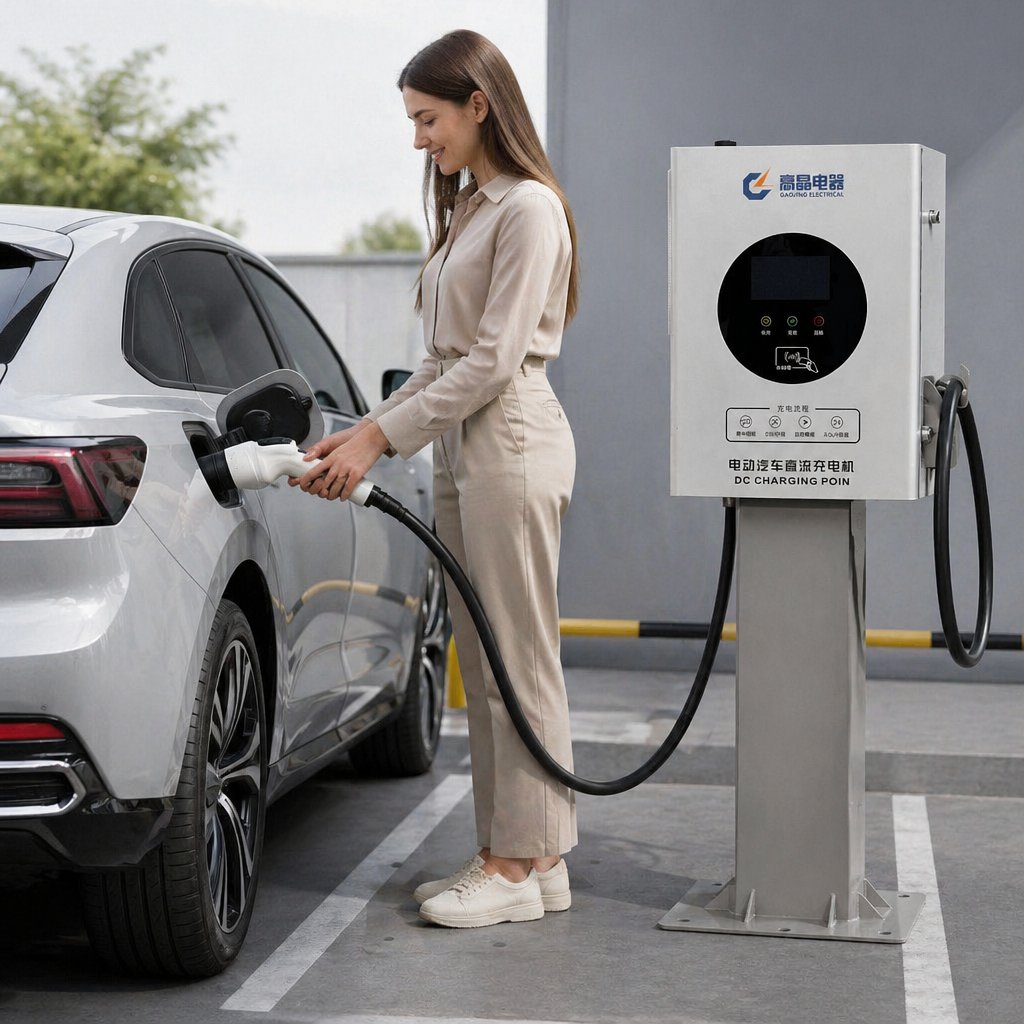

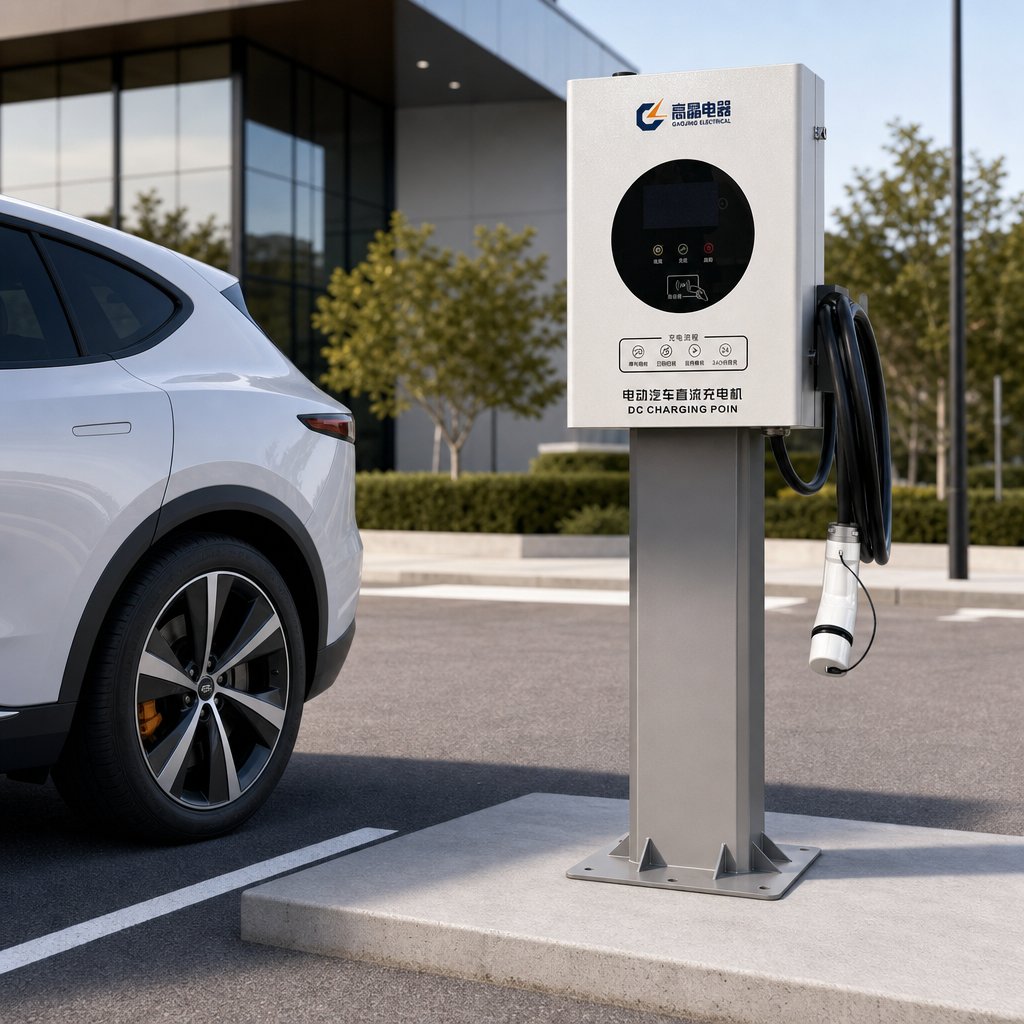

Application Images
Application Images
Product FAQ
What information is required for a quotation?
Please provide target market, power requirement, connector standard, quantity, OCPP or platform requirement, application scenario and customization scope for 40kW Single-Gun DC Fast Charger.
Which connector standards can be evaluated for this product?
Connector standards can be evaluated during RFQ based on the target market, charger type and available configuration for the selected model.
Can this product integrate with an existing OCPP platform?
OCPP or platform integration should be reviewed against the exact charger model, controller configuration, protocol version and backend platform requirements.
Is the controller configuration project-specific?
Controller and communication configuration can be project-specific and should be confirmed with the charger architecture, HMI, payment system and communication interface requirements.
Can the product be adapted for a target market?
Target-market adaptation can be discussed for connector, communication, documentation and configuration requirements. Compliance details should be confirmed by exact model and market.
What technical information should an OEM buyer provide?
OEM buyers should provide product type, power range, connector standard, controller or platform requirements, branding scope, quantity and application scenario.
Request a Technical RFQ
Send your target connector standard, platform protocol and installation scenario to receive a 40kW DC charger configuration proposal.
