DC Fast Chargers

160kW Dual-Gun DC Fast Charger for Public Charging Stations

Name: 160kW Dual-Gun DC Fast Charger
Brand: Apex EV Charging Solutions

Dual-gun DC fast charger for public charging stations, logistics parks and commercial charging operations.

Request Technical Quote View Specifications

Procurement fit

Use this product when the project requires a confirmed EV charging configuration before quotation.

160kW Dual-Gun DC Fast Charger is dual-gun DC fast charger for public charging stations, logistics parks and commercial charging operations.

This product is intended for Charging operators, EPC contractors, Fleet sites, Public charging station integrators. It supports B2B teams that need a clear product configuration before quotation, sampling, integration planning or project comparison.

Buyer and application

Who it fits and what problem it solves.

Buyer fit

Charging operators, EPC contractors, Fleet sites, Public charging station integrators

Application fit

Public charging stations, Expressway service areas, CBD parking facilities, Logistics parks, Fleet depots

Project problem

It helps charging operators, EPC contractors and project integrators define power level, connector standard, OCPP platform requirement, charging scenario and customization scope before RFQ.

Integration scope

Project configuration should cover power modules, charging connector, HMI/payment requirements, communication interface, OCPP platform, target market and installation scenario.

Confirmed Specifications

Technical Specifications

Total rated power	160kW
Power distribution	Single gun 160kW / dual gun 80kW + 80kW
Input voltage	AC 380V +/-20%
Input frequency	50Hz / 60Hz
Output voltage	200-1000V DC
Single-gun max current	0-250A continuously adjustable
DC efficiency	>=96%
Power factor	>=0.99 at full load
Standby power	<=15W
Charging interface	CCS2 / CHAdeMO / GBT customizable
Protocol	OCPP 1.6J, OCPP 2.0 optional
Communication	4G / Ethernet / GPS optional
Protection rating	IP54
Operating temperature	-20C to +50C
Dimensions	Approx. 700 x 1800 x 600mm, H x W x D
Cable length	5m x 2 default, 3-10m customizable

RFQ Inputs

What information is required for quotation?

Target market and buyer type.
Power requirement, connector standard and installation scenario.
OCPP or backend platform requirement.
Estimated quantity, project stage and expected timeline.
Branding, firmware, interface, documentation or packaging scope.

Key Features

Supports one high-power charging session or two simultaneous charging sessions.
Independent dual-gun control design helps reduce single-point charging interruption.
Designed for public and fleet sites that need higher charging throughput.
Supports RFID, APP, QR code, scheduled charging and remote operation functions according to configuration.
OEM customization can cover power variants, cable length, cabinet color, logo and networking modules.

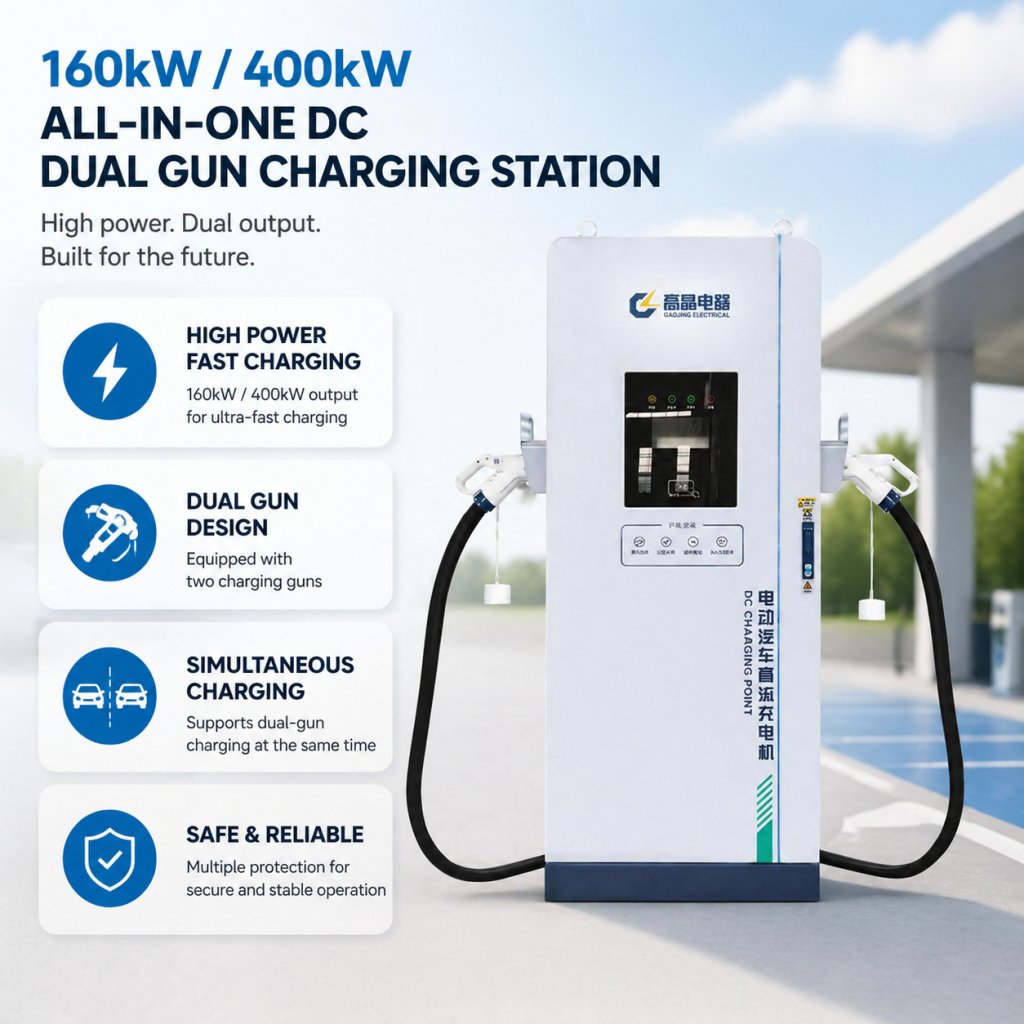

Gallery Images

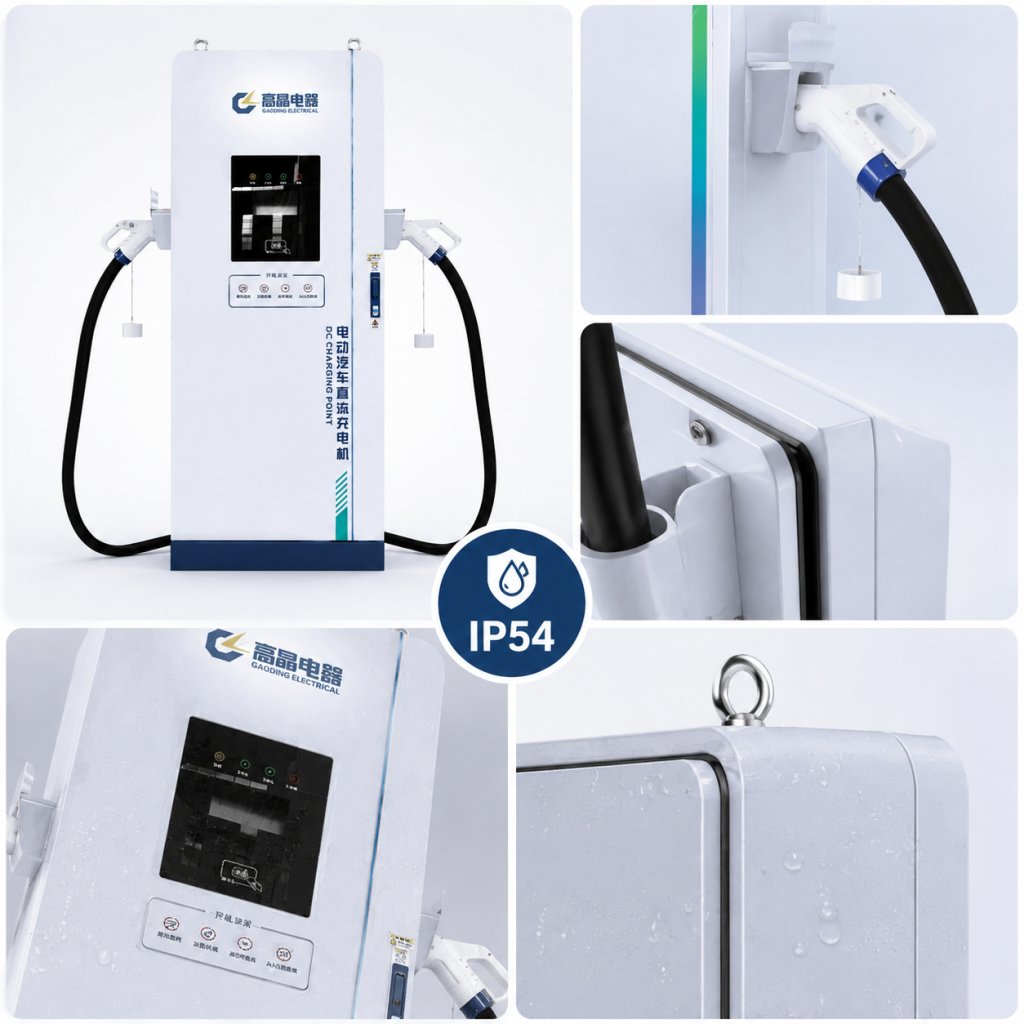

Product Details / Interface Images

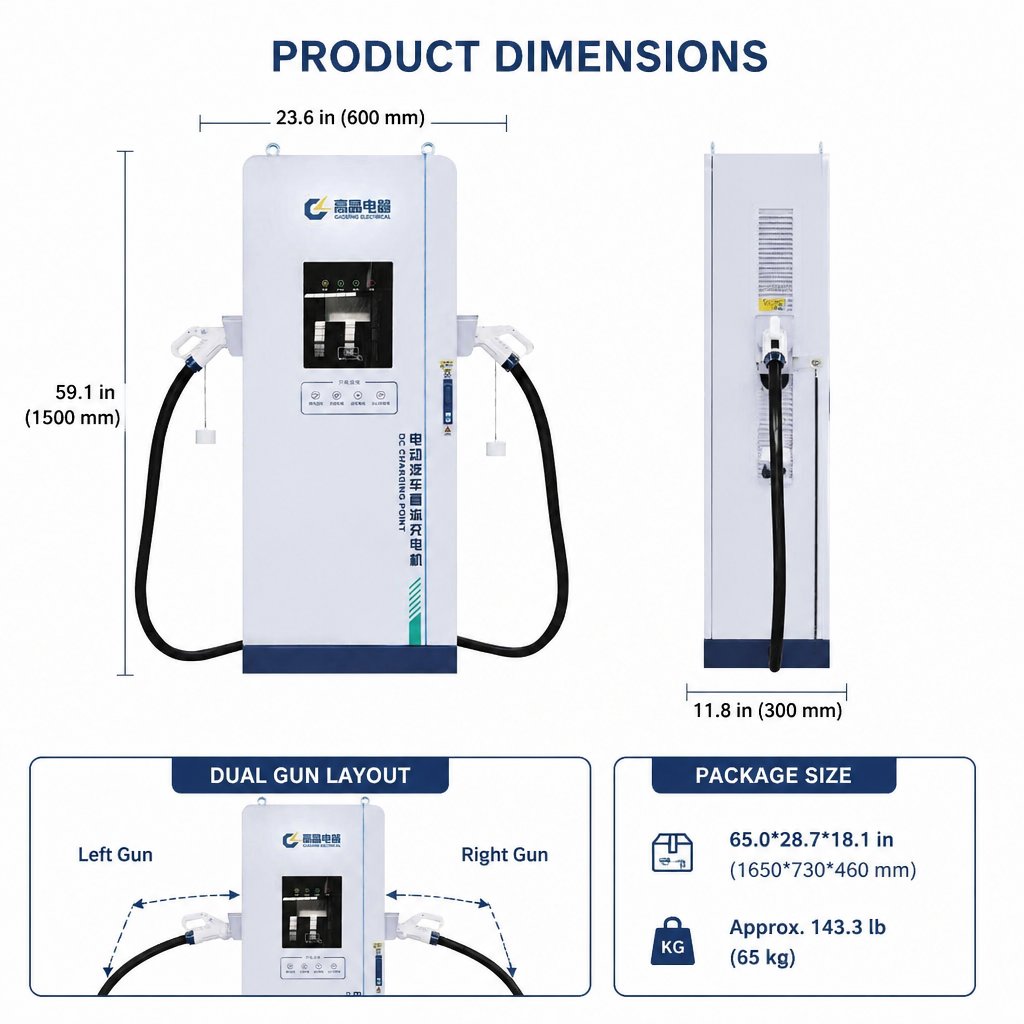

Dimension Drawings

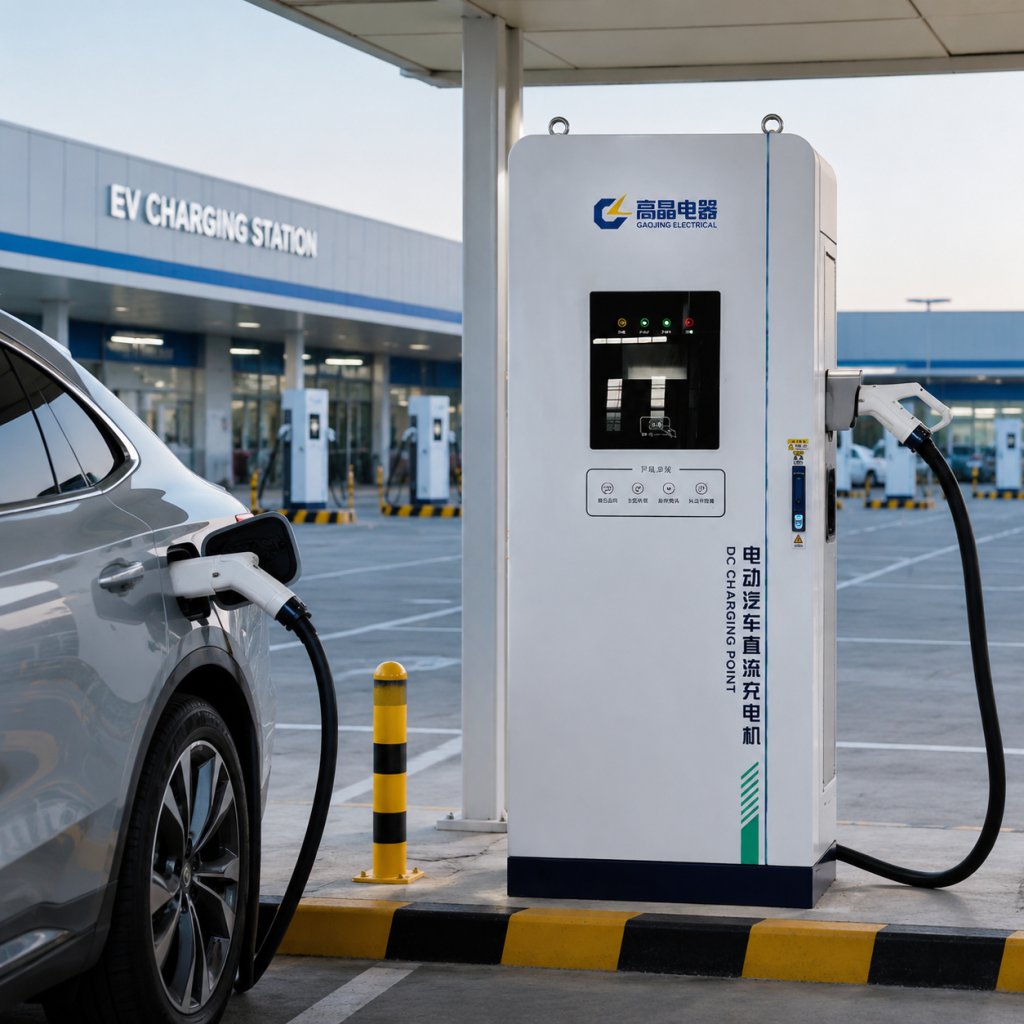

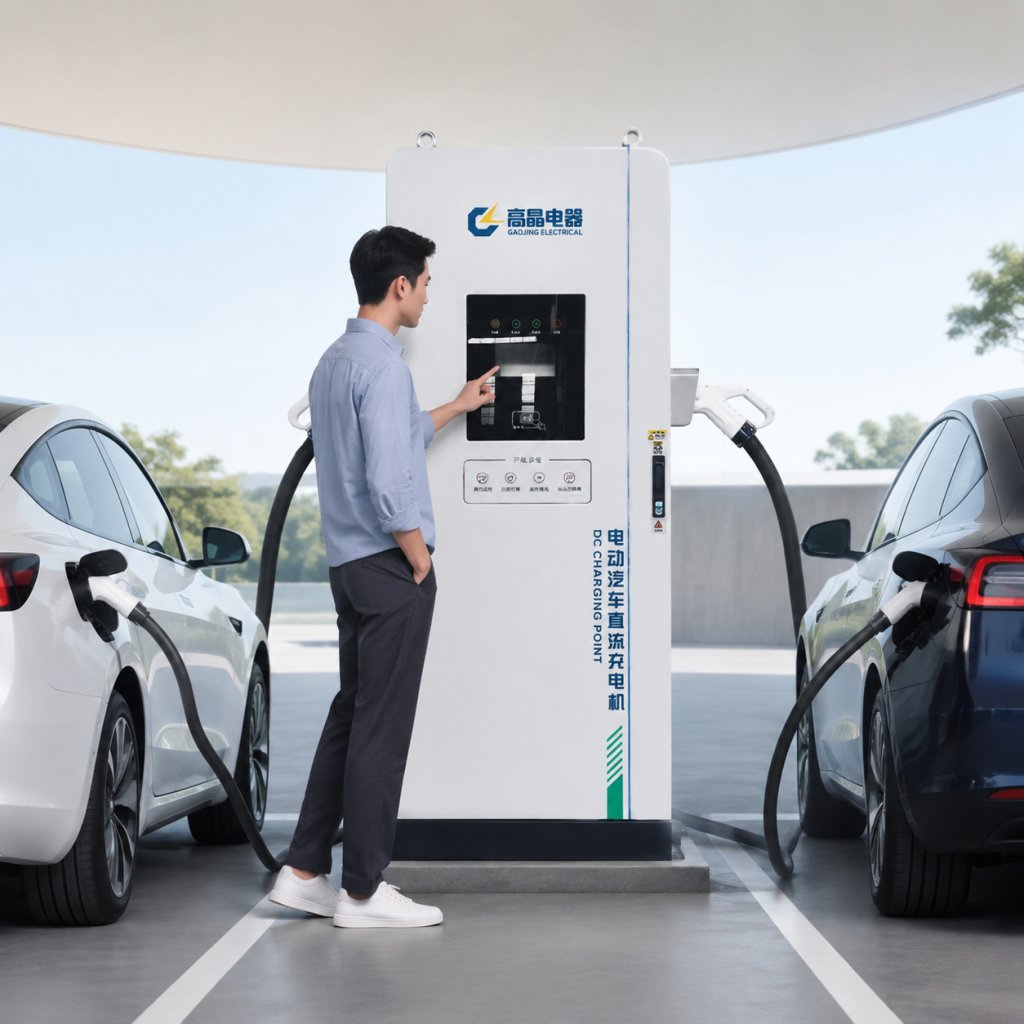

Application Images

FAQ

Product FAQ

What information is required for a quotation?

Please provide target market, power requirement, connector standard, quantity, OCPP or platform requirement, application scenario and customization scope for 160kW Dual-Gun DC Fast Charger.

Which connector standards can be evaluated for this product?

Connector standards can be evaluated during RFQ based on the target market, charger type and available configuration for the selected model.

Can this product integrate with an existing OCPP platform?

OCPP or platform integration should be reviewed against the exact charger model, controller configuration, protocol version and backend platform requirements.

Is the controller configuration project-specific?

Controller and communication configuration can be project-specific and should be confirmed with the charger architecture, HMI, payment system and communication interface requirements.

Can the product be adapted for a target market?

Target-market adaptation can be discussed for connector, communication, documentation and configuration requirements. Compliance details should be confirmed by exact model and market.

What technical information should an OEM buyer provide?

OEM buyers should provide product type, power range, connector standard, controller or platform requirements, branding scope, quantity and application scenario.

Request a Technical RFQ

Request a 160kW dual-gun charger configuration for your connector type, backend platform, charging layout and target market.

Send Product Requirements
