400kW Heavy-Duty DC Fast Charger for Electric Truck Fleets

Name: 400kW Heavy-Duty DC Fast Charger
Brand: Apex EV Charging Solutions

High-power dual-gun DC fast charging solution for electric truck fleets, ports and logistics depots.

Request Technical Quote View Specifications

Procurement fit

Use this product when the project requires a confirmed EV charging configuration before quotation.

400kW Heavy-Duty DC Fast Charger is high-power dual-gun DC fast charging solution for electric truck fleets, ports and logistics depots.

This product is intended for Fleet operators, Ports, Logistics parks, EPC contractors, Heavy-duty charging integrators. It supports B2B teams that need a clear product configuration before quotation, sampling, integration planning or project comparison.

Buyer and application

Who it fits and what problem it solves.

Buyer fit

Fleet operators, Ports, Logistics parks, EPC contractors, Heavy-duty charging integrators

Application fit

Electric truck fleets, Logistics depots, Port vehicles, Heavy-duty fleet charging zones

Project problem

It helps charging operators, EPC contractors and project integrators define power level, connector standard, OCPP platform requirement, charging scenario and customization scope before RFQ.

Integration scope

Project configuration should cover power modules, charging connector, HMI/payment requirements, communication interface, OCPP platform, target market and installation scenario.

Confirmed Specifications

Technical Specifications

Total rated power	400kW
Power distribution	Single gun 400kW / dual gun 200kW + 200kW
Input voltage	AC 380V +/-20%
Input frequency	50Hz / 60Hz
Output voltage	200-1000V DC, extendable to 1500V
Single-gun max current	0-300A continuously adjustable
DC efficiency	>=96%
Power factor	>=0.99 at full load
Standby power	<=15W
Operating noise	<=65 dB at 1m
Charging interface	CCS2 / GBT heavy-duty / CHAdeMO customizable
Protocol	OCPP 1.6J, OCPP 2.0 optional
Communication	4G / Ethernet / GPS optional
Cable length	8m default, 6-15m customizable
Protection rating	IP54
Operating temperature	-20C to +50C
Dimensions	Approx. 750 x 1800 x 950mm, H x W x D

RFQ Inputs

What information is required for quotation?

Target market and buyer type.
Power requirement, connector standard and installation scenario.
OCPP or backend platform requirement.
Estimated quantity, project stage and expected timeline.
Branding, firmware, interface, documentation or packaging scope.

Key Features

Built for high-energy commercial vehicles and heavy-duty fleet operations.
Single-gun or dual-gun power distribution supports different vehicle charging priorities.
Heavy-duty cable configuration supports longer charging distance and tougher on-site use.
OCPP platform integration and optional GPS, Ethernet and 4G support enable fleet-level operation.
Suitable for EPC and integrators building fleet charging depots or port charging zones.

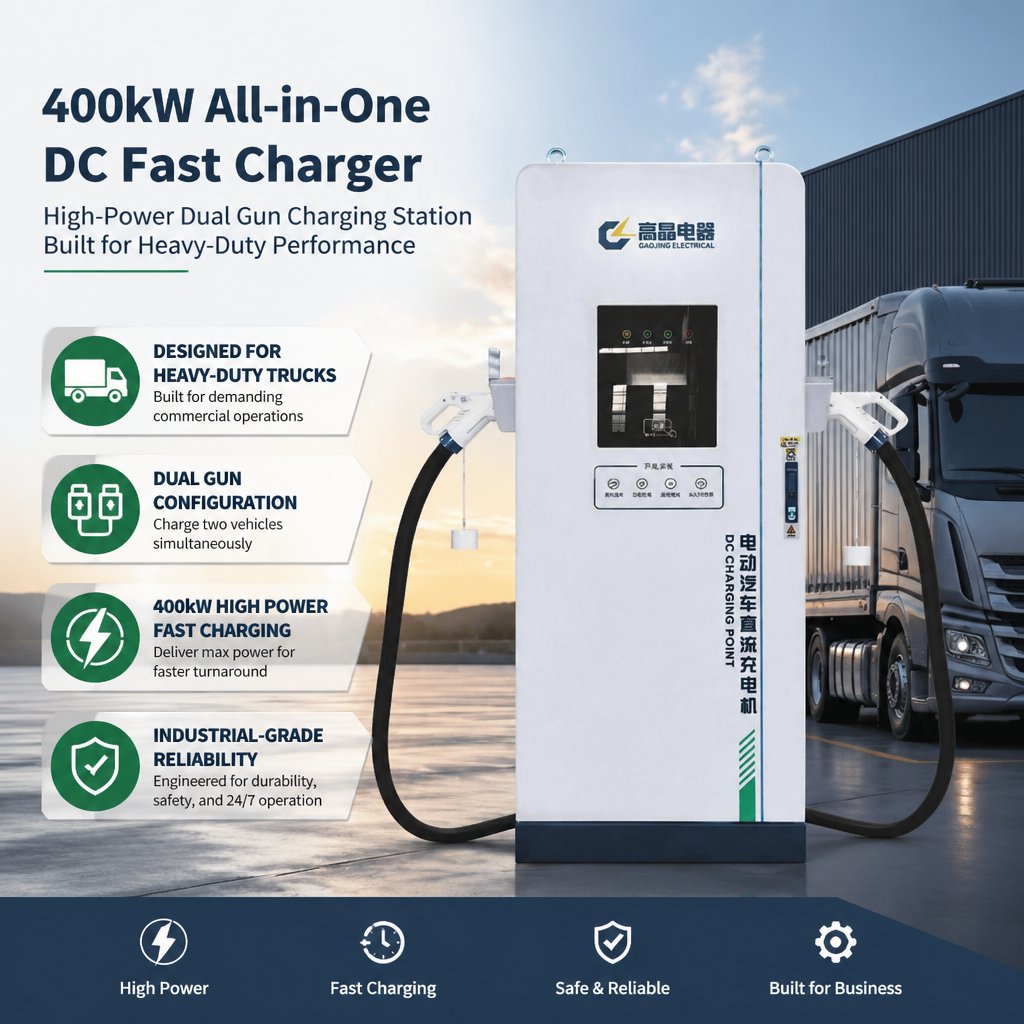

Gallery Images

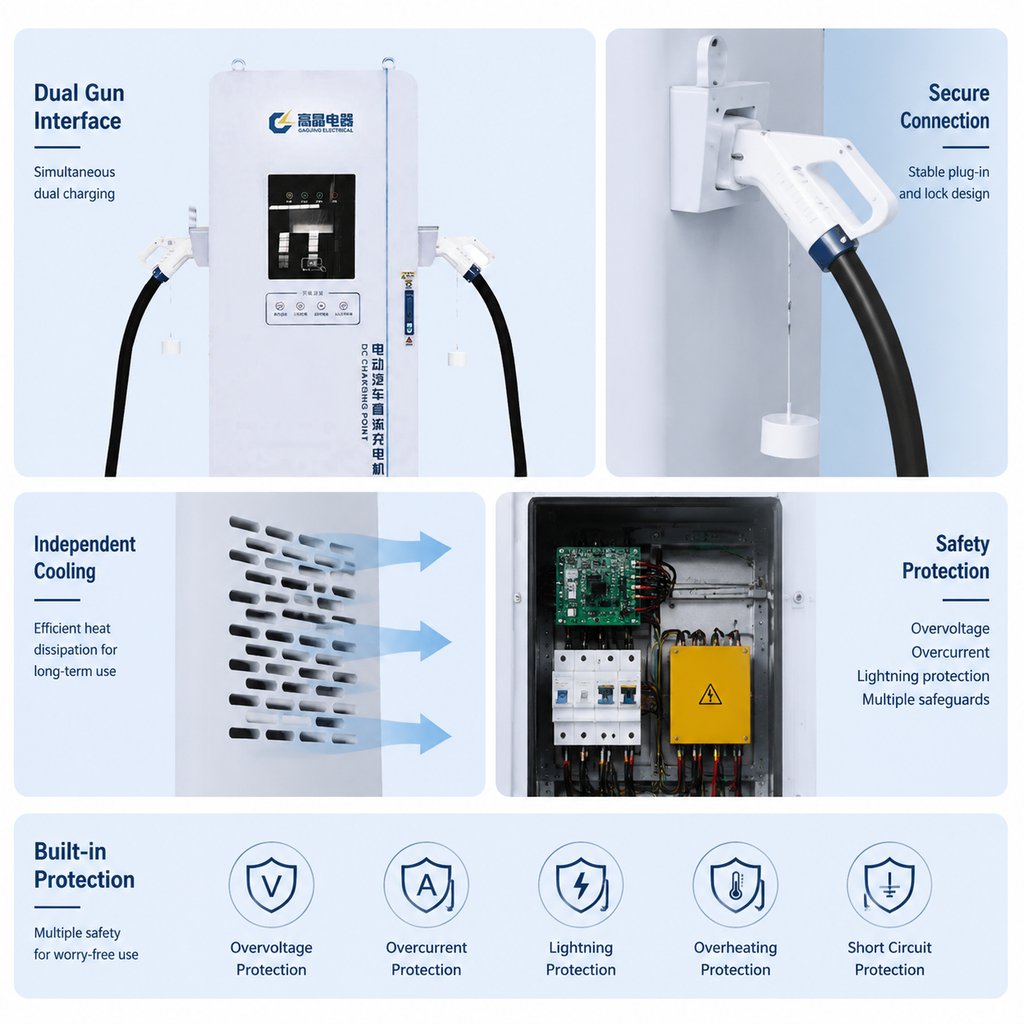

Product Details / Interface Images

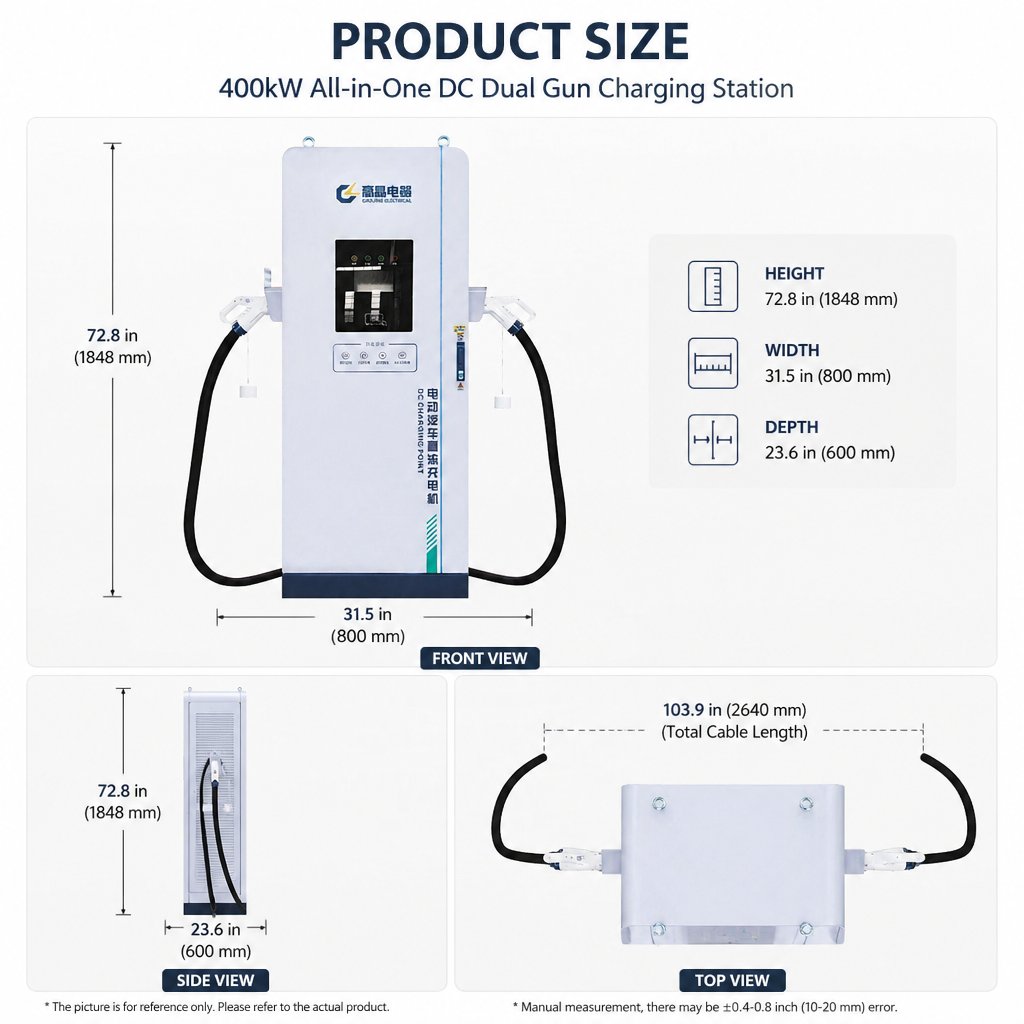

Dimension Drawings

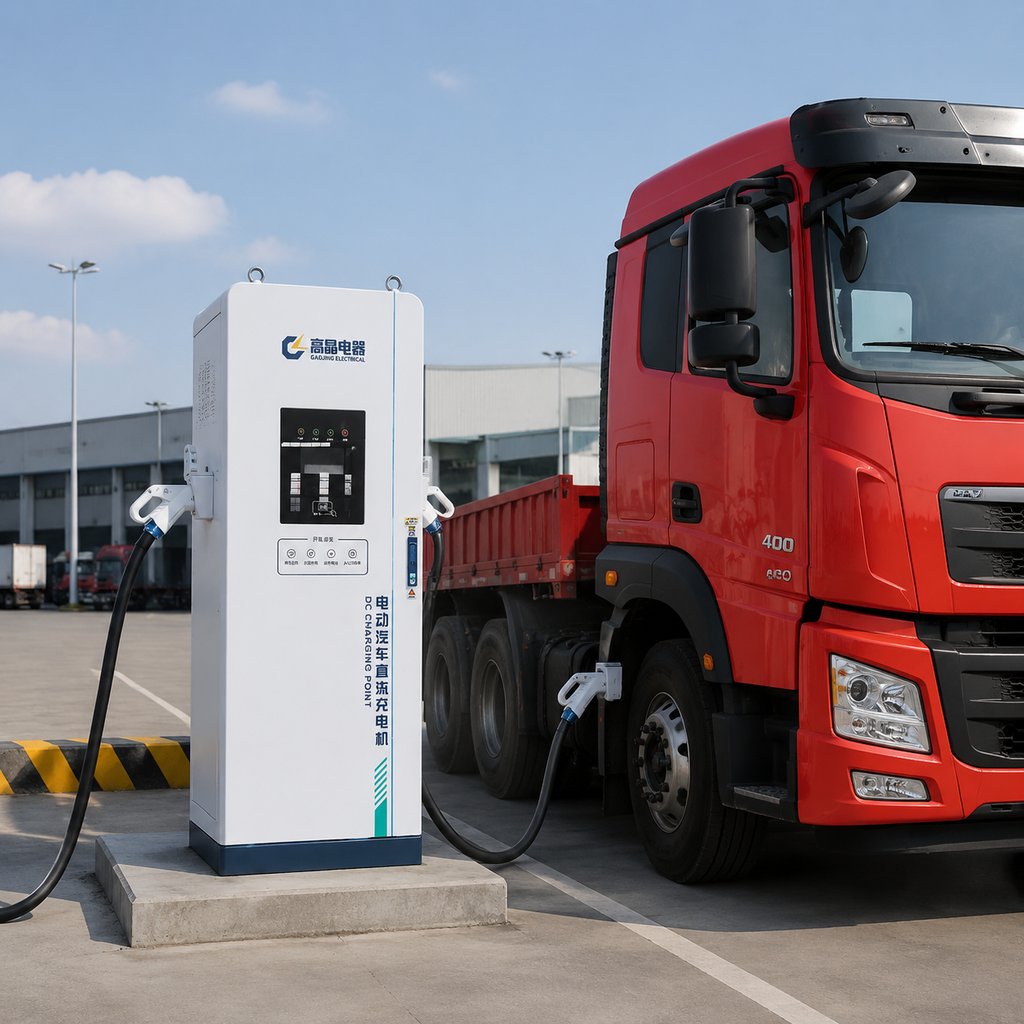

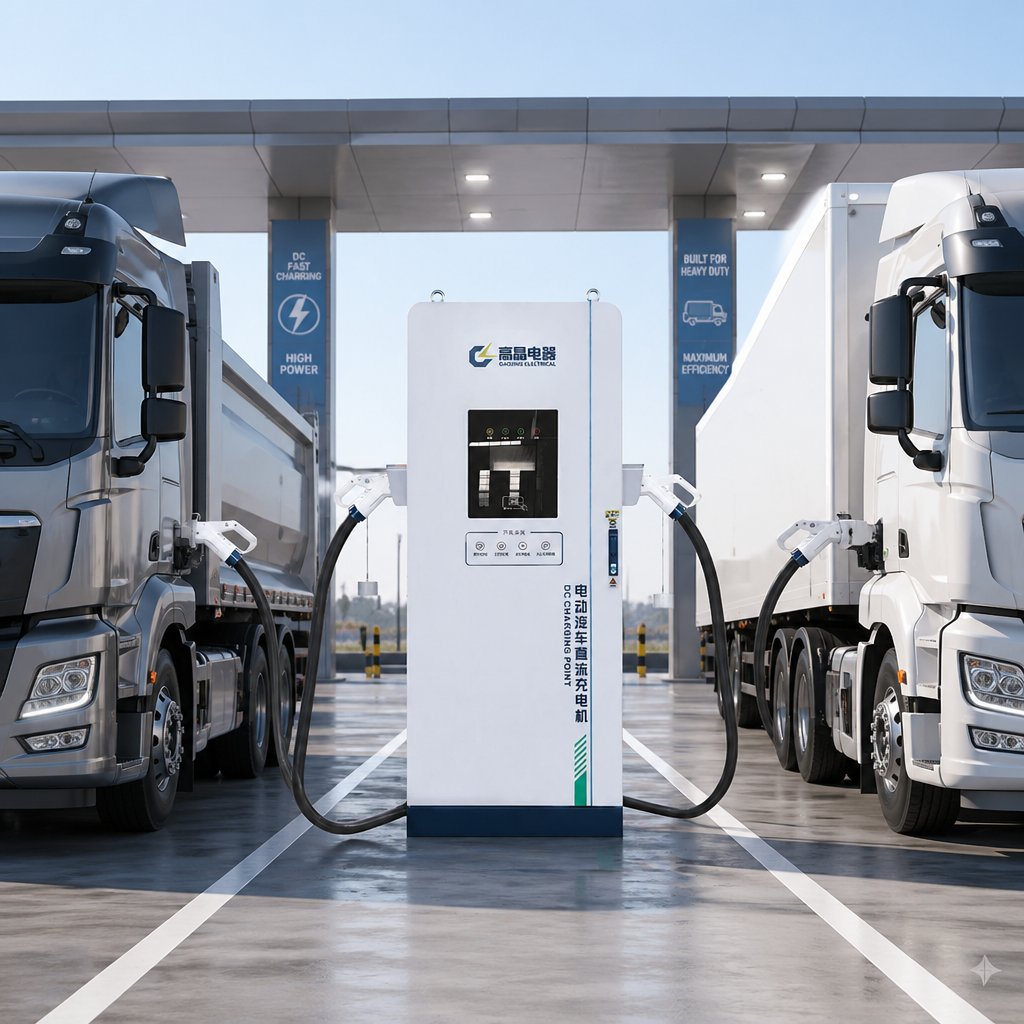

Application Images

FAQ

Product FAQ

What information is required for a quotation?

Please provide target market, power requirement, connector standard, quantity, OCPP or platform requirement, application scenario and customization scope for 400kW Heavy-Duty DC Fast Charger.

Which connector standards can be evaluated for this product?

Connector standards can be evaluated during RFQ based on the target market, charger type and available configuration for the selected model.

Can this product integrate with an existing OCPP platform?

OCPP or platform integration should be reviewed against the exact charger model, controller configuration, protocol version and backend platform requirements.

Is the controller configuration project-specific?

Controller and communication configuration can be project-specific and should be confirmed with the charger architecture, HMI, payment system and communication interface requirements.

Can the product be adapted for a target market?

Target-market adaptation can be discussed for connector, communication, documentation and configuration requirements. Compliance details should be confirmed by exact model and market.

What technical information should an OEM buyer provide?

OEM buyers should provide product type, power range, connector standard, controller or platform requirements, branding scope, quantity and application scenario.

Request a Technical RFQ

Send vehicle type, battery voltage range, required connector standard and depot layout for a heavy-duty DC charging proposal.

Send Product Requirements
