Apex 6650 AC EV Charger Controller Board

Name: Apex 6650 AC EV Charger Controller Board
Brand: Apex EV Charging Solutions

AC wallbox controller board for Type 2 and European-standard EV charger manufacturing projects.

Request Technical Quote View Specifications

Apex 6650 AC EV Charger Controller Board

Procurement fit

Use this product when the project requires a confirmed EV charging configuration before quotation.

Apex 6650 AC EV Charger Controller Board is aC wallbox controller board for Type 2 and European-standard EV charger manufacturing projects.

This product is intended for AC wallbox factories, Charger brands, Distributors, AC charger OEM/ODM manufacturers. It supports B2B teams that need a clear product configuration before quotation, sampling, integration planning or project comparison.

Buyer and application

Who it fits and what problem it solves.

Buyer fit

AC wallbox factories, Charger brands, Distributors, AC charger OEM/ODM manufacturers

Application fit

Type 2 wallbox production, 3.5kW AC charger designs, 7kW AC charger designs, 11kW AC charger designs, 22kW AC charger designs

Project problem

It helps charger developers and integrators evaluate controller architecture, power module communication, HMI connection, payment module interface and OCPP platform requirements.

Integration scope

Integration discussion should cover power modules, HMI, meter, payment system, communication interfaces, connector configuration, OCPP platform and cabinet architecture.

Confirmed Specifications

Technical Specifications

Model	Apex JC-6650
Standard	European standard, IEC 61851-1 referenced in material
Power support	3.5kW / 7kW / 11kW / 22kW according to material
Max current	16A / 32A
Communication	CAN, RS485, Ethernet
Safety	Integrated leakage protection monitoring
I/O	Terminals for gun lock, CP, PP and external meters
Smart connectivity	RFID, WiFi, 4G and OCPP 1.6J according to configuration

RFQ Inputs

What information is required for quotation?

Target market and buyer type.
Power requirement, connector standard and installation scenario.
OCPP or backend platform requirement.
Estimated quantity, project stage and expected timeline.
Branding, firmware, interface, documentation or packaging scope.

Key Features

Designed for AC wallbox OEM/ODM manufacturing and brand customization.
Supports 16A and 32A AC charging designs according to material.
Communication interfaces support smart charger functions and backend integration.
Dedicated terminals for gun lock, CP, PP and external meters simplify integration.
Fits distributors and charger brands building a localized AC wallbox portfolio.

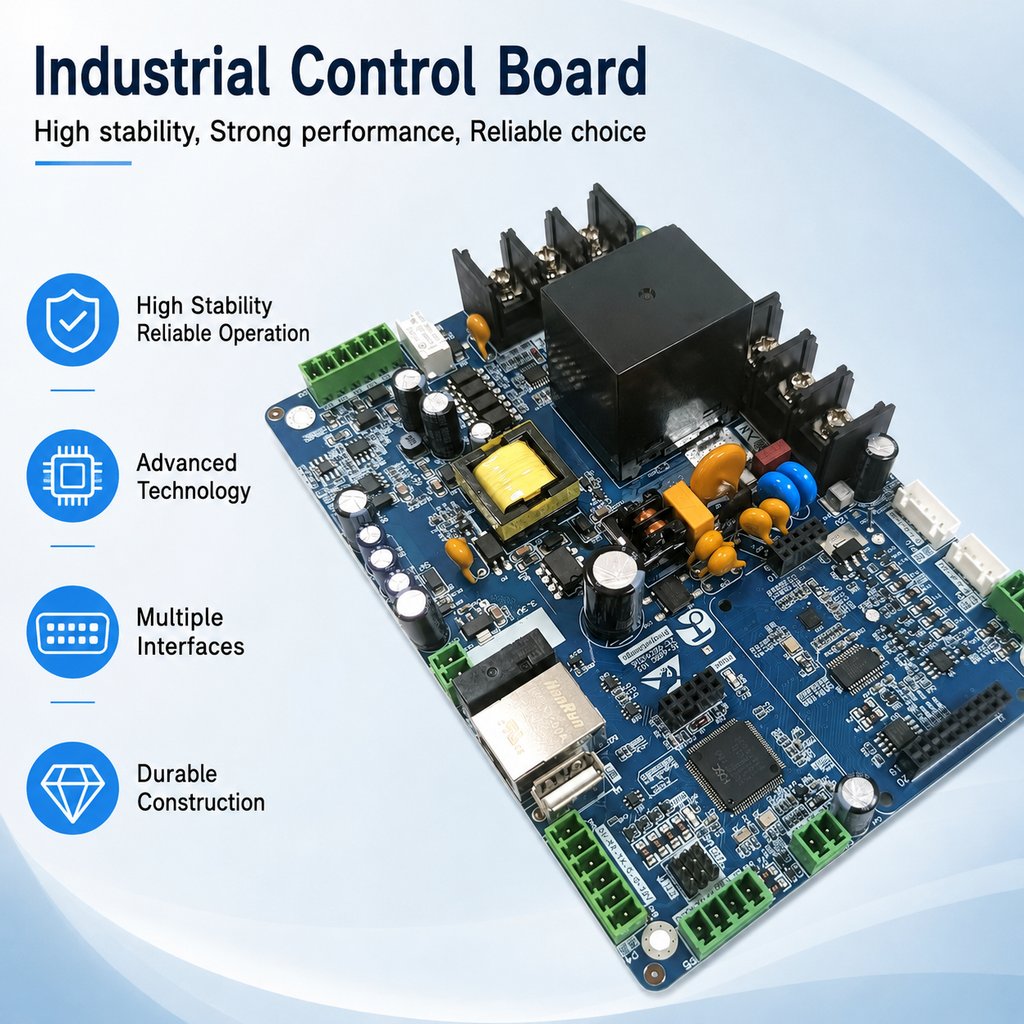

Gallery Images

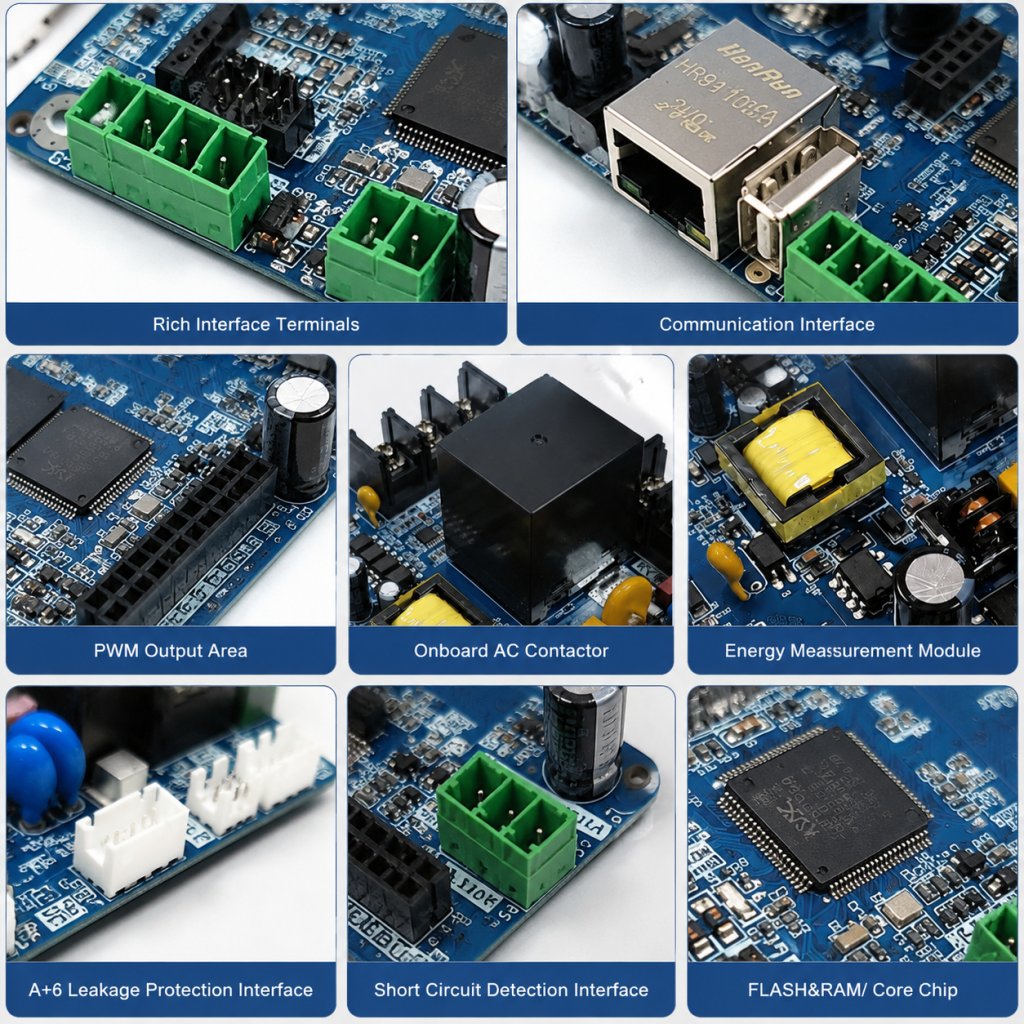

Product Details / Interface Images

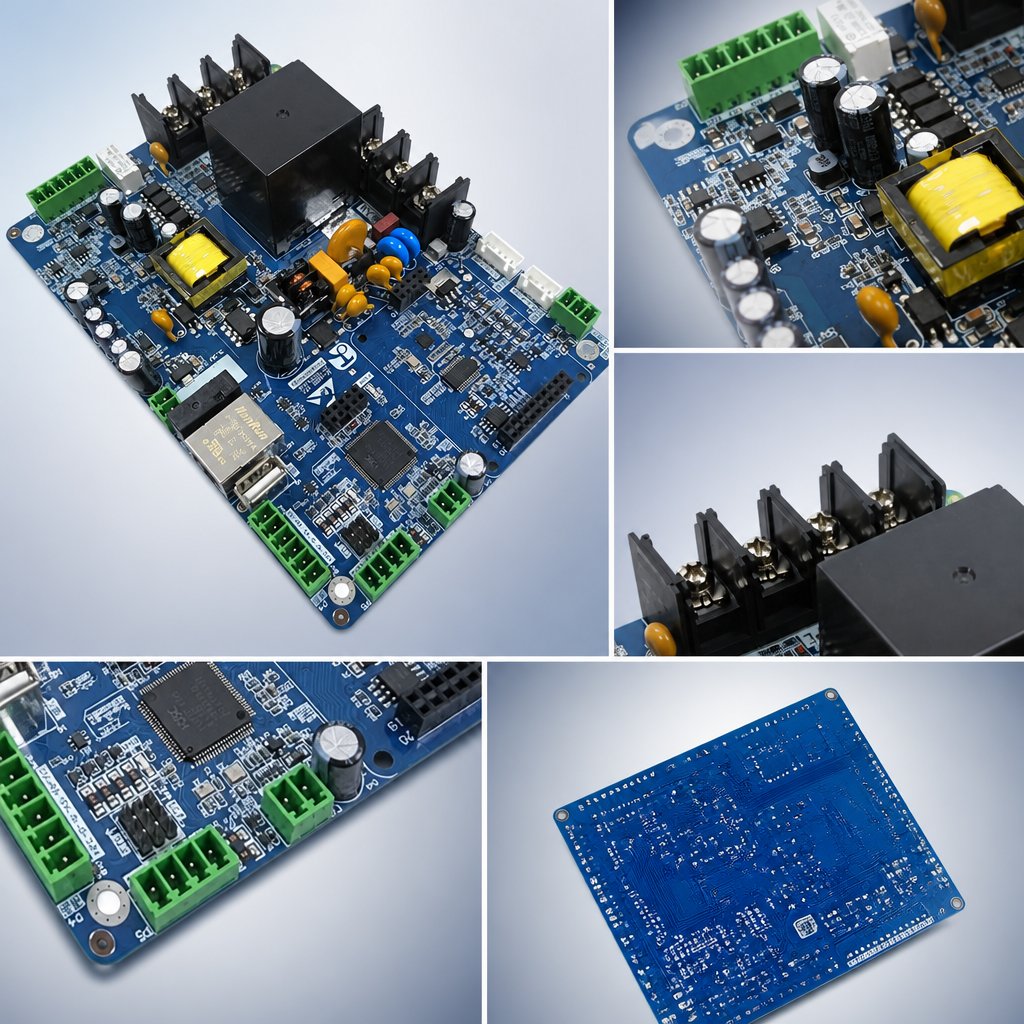

Apex 6650 AC EV Charger Controller Board Product Details / Interface Images 3

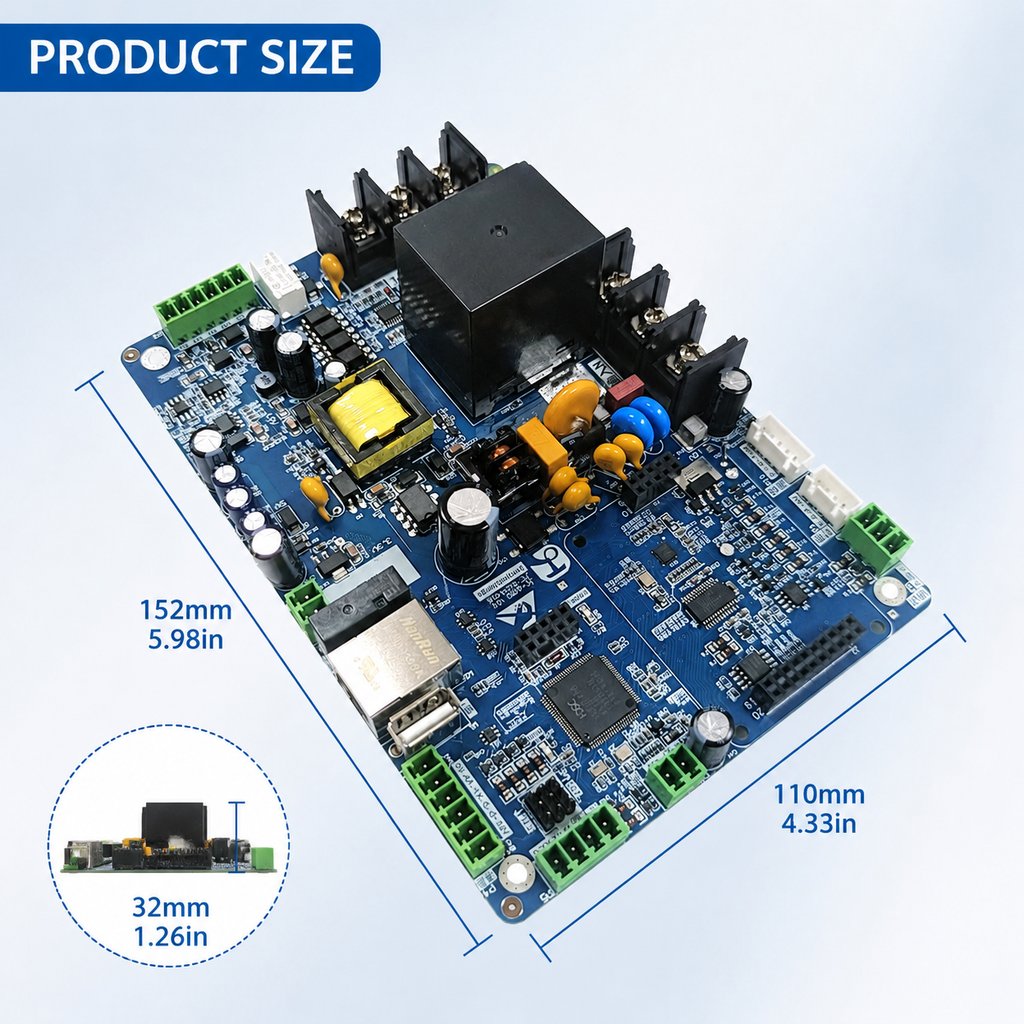

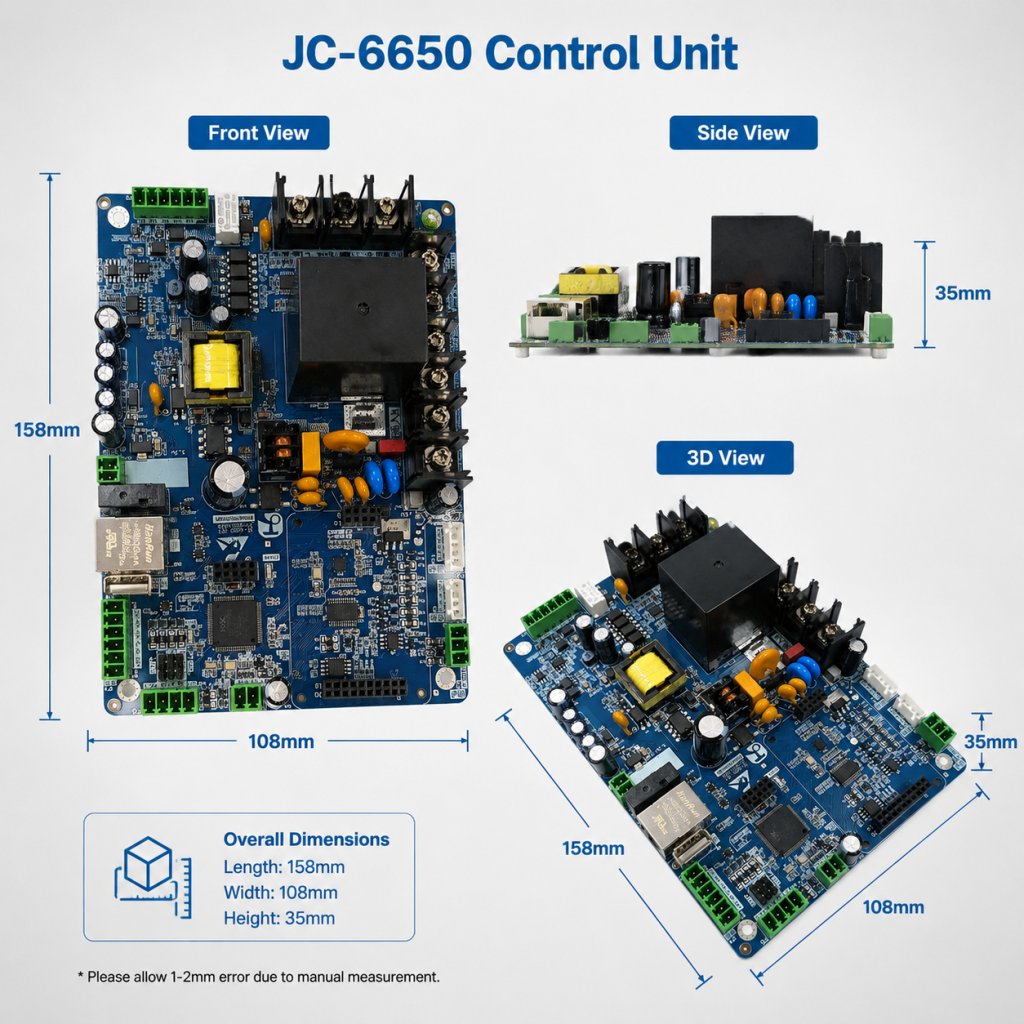

Dimension Drawings

FAQ

Product FAQ

What information is required for a quotation?

Please provide target market, power requirement, connector standard, quantity, OCPP or platform requirement, application scenario and customization scope for Apex 6650 AC EV Charger Controller Board.

Which connector standards can be evaluated for this product?

Connector standards can be evaluated during RFQ based on the target market, charger type and available configuration for the selected model.

Can this product integrate with an existing OCPP platform?

OCPP or platform integration should be reviewed against the exact charger model, controller configuration, protocol version and backend platform requirements.

Is the controller configuration project-specific?

Controller and communication configuration can be project-specific and should be confirmed with the charger architecture, HMI, payment system and communication interface requirements.

Can the product be adapted for a target market?

Target-market adaptation can be discussed for connector, communication, documentation and configuration requirements. Compliance details should be confirmed by exact model and market.

What technical information should an OEM buyer provide?

OEM buyers should provide product type, power range, connector standard, controller or platform requirements, branding scope, quantity and application scenario.

Request a Technical RFQ

Share your wallbox power level, connector type, communication method and branding plan to receive an AC controller solution.
